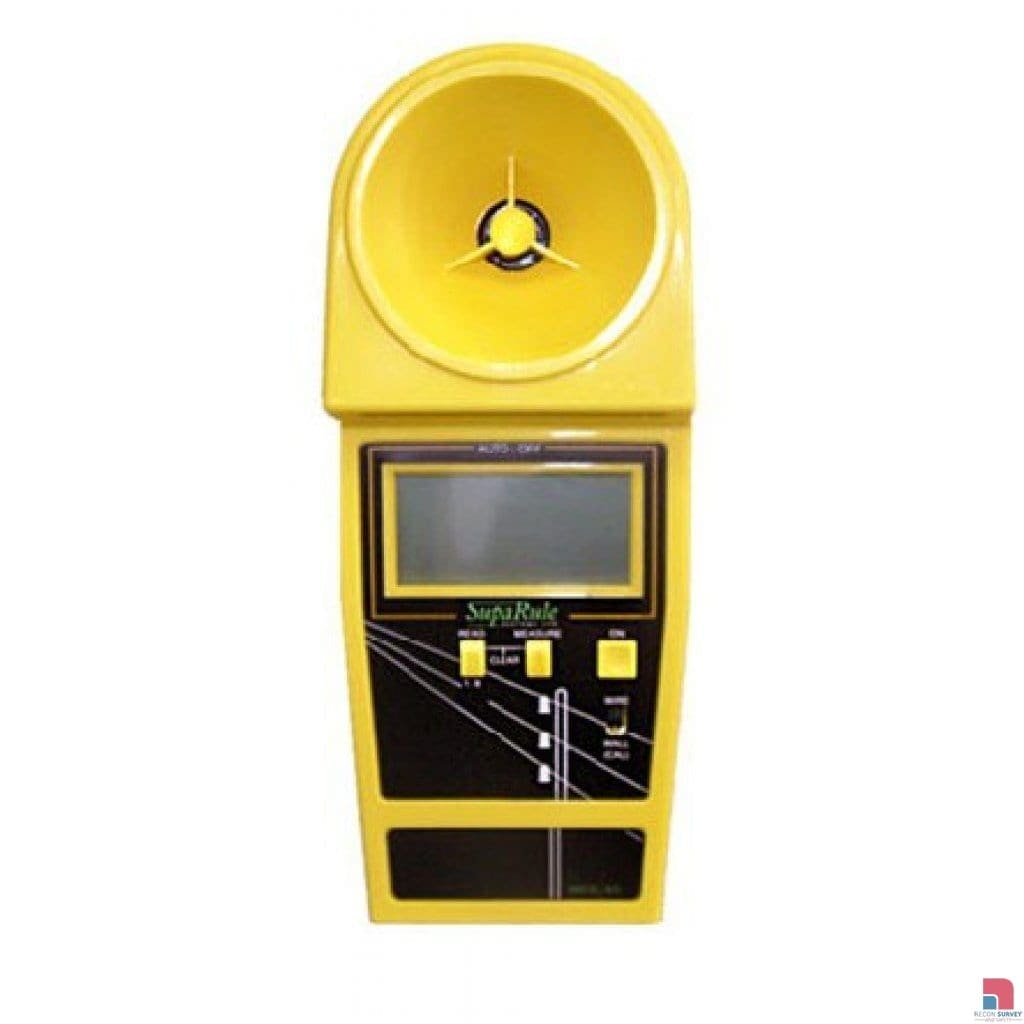

Suparule CHM190 Cable Height Meter

Measure cable sag, cable height distance and overhead clearance of conductors with the Suparule Cable Height Meter. This range offers a choice of models for measuring up to six wires and finding the height of overhead cables up to 23m. The CHM190 is the standard single wire measurement version, offering up to 15m height measurement. Used as a modern alternative to telescopic measuring poles, the cable height meter is suitable for use within the utilities industries such as telecoms and electricity. The CHM190 works by emitting short bursts of sound, allowing the microprocessor to calculate the elapsed time for these sounds to be reflected from the cable back to the instrument. Results can then be displayed in either metric or imperial units. Range: 25mm Cable 3-15m 12mm Cable 3-15m 5.5mm Cable 3-12m 2.5mm Cable 3-10m Features 0.5kg Weight Compact Size Auto Power off 50,000 Measurement Battery Life 0.5% ± 2 digits Accuracy Single Wire Measurement
