REMI CIS 24 Plus

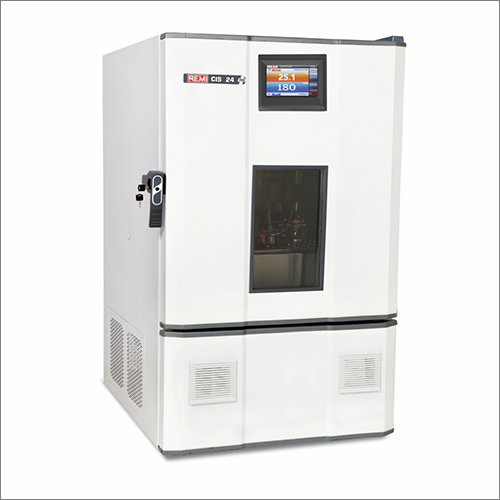

�� REMI CIS-24 Plus Orbital Shaking Incubator (LCD/TFT Model)The REMI CIS-24 Plus is a versatile and reliable laboratory instrument designed for applications requiring the precise control of both temperature and orbital shaking. It is widely used in fields like cell culture, microbial growth studies, fermentation, enzyme reactions, life sciences, tissue culture, and biotechnology research.Key Features and FunctionalityCombined Functionality: The unit provides the dual advantage of a closely controlled incubation environment and a smooth orbital shaking mechanism for uniform agitation of samples.Precise Temperature Control: It features a Digital PID Controller and a reliable PT-100 sensor to maintain exceptional temperature accuracy, typically $\pm 0.5^\circ\text{C}$. The standard CIS-24 Plus offers a temperature range of $5^\circ\text{C}$ to $60^\circ\text{C}$.Efficient Shaking: The orbital shaking is driven by a Brushless Induction Motor with a variable frequency drive, ensuring continuous, non-stop operation and a gentle start/stop system to prevent liquid spillage.Shaking Speed Range: $20$ to $250$ RPM (Revolutions Per Minute).Shaking Amplitude: $25$ mm orbital throw.Stability: A compact, counter-balanced drive mechanism ensures high stability and reliable performance even with uneven or heavy loads.Interior and Capacity:Chamber Volume: Typically $215$ Liters (Ltrs).Internal Material: Constructed with durable Stainless Steel – 304 grade (or 316 grade for GMP models) for corrosion resistance and easy cleaning.Shaking Platform: Comes with a Universal Shaking Platform ($580 \text{mm} \times 600 \text{mm}$) to accommodate various sizes of flask holding clamps (clamps are usually ordered separately).Maximum Capacity Examples: Up to $9$ flasks of $2000 \text{ml}$, $24$ flasks of $500 \text{ml}$, or $49$ flasks of $100 \text{ml}$.Design and User InterfaceDisplay: Equipped with either an LCD or TFT display (4-inch or larger color touch screen in some versions) for real-time status, parameter display, and easy navigation.Construction: Robust, rectangular build with an External Body of Powder Coated CRCA Steel or Stainless Steel. Features highly efficient, CFC-free PUF insulation and a unique thermal barrier design for energy efficiency.Viewing: A Tempered Glass Window allows for convenient observation of samples without disturbing the internal chamber conditions.Ergonomics: Includes an attractive door profile, rounded inner chamber corners for easy cleaning, and sometimes a smart handle with an LED closure indication.Safety and Data FeaturesAlarms: Features multiple safety alarms, including:High/Low Temperature Safety Cut-off & Alarms (e.g., set temperature $\pm 2^\circ\text{C}$).Door Open Alarm (audible alarm if open for over one minute).Power Failure Alarm (audio-visual).Compressor Protection: Includes a time delay for compressor switch-on and an overload cut-off relay (in cooling models like the CIS-24 Plus).Data Logging and Traceability (Optional Features):Memory: Stores multiple user programs (e.g., 9 programs).PC Communication: RS-485 interface for PC communication with optional software complying with USFDA’s 21 CFR Part 11 guidelines (for electronic records and signatures).Printer Interface: Centronic interface to record Temperature, Date, and Time via a Dot Matrix printer.Power Record: Records power failure and resumption with date and time.�� REMI CIS-24 Plus Orbital Shaking Incubator (LCD/TFT Model)The REMI CIS-24 Plus is a versatile and reliable laboratory instrument designed for applications requiring the precise control of both temperature and orbital shaking. It is widely used in fields like cell culture, microbial growth studies, fermentation, enzyme reactions, life sciences, tissue culture, and biotechnology research.Key Features and FunctionalityCombined Functionality: The unit provides the dual advantage of a closely controlled incubation environment and a smooth orbital shaking mechanism for uniform agitation of samples.Precise Temperature Control: It features a Digital PID Controller and a reliable PT-100 sensor to maintain exceptional temperature accuracy, typically $\pm 0.5^\circ\text{C}$. The standard CIS-24 Plus offers a temperature range of $5^\circ\text{C}$ to $60^\circ\text{C}$.Efficient Shaking: The orbital shaking is driven by a Brushless Induction Motor with a variable frequency drive, ensuring continuous, non-stop operation and a gentle start/stop system to prevent liquid spillage.Shaking Speed Range: $20$ to $250$ RPM (Revolutions Per Minute).Shaking Amplitude: $25$ mm orbital throw.Stability: A compact, counter-balanced drive mechanism ensures high stability and reliable performance even with uneven or heavy loads.Interior and Capacity:Chamber Volume: Typically $215$ Liters (Ltrs).Internal Material: Constructed with durable Stainless Steel – 304 grade (or 316 grade for GMP models) for corrosion resistance and easy cleaning.Shaking Platform: Comes with a Universal Shaking Platform ($580 \text{mm} \times 600 \text{mm}$) to accommodate various sizes of flask holding clamps (clamps are usually ordered separately).Maximum Capacity Examples: Up to $9$ flasks of $2000 \text{ml}$, $24$ flasks of $500 \text{ml}$, or $49$ flasks of $100 \text{ml}$.Design and User InterfaceDisplay: Equipped with either an LCD or TFT display (4-inch or larger color touch screen in some versions) for real-time status, parameter display, and easy navigation.Construction: Robust, rectangular build with an External Body of Powder Coated CRCA Steel or Stainless Steel. Features highly efficient, CFC-free PUF insulation and a unique thermal barrier design for energy efficiency.Viewing: A Tempered Glass Window allows for convenient observation of samples without disturbing the internal chamber conditions.Ergonomics: Includes an attractive door profile, rounded inner chamber corners for easy cleaning, and sometimes a smart handle with an LED closure indication.Safety and Data FeaturesAlarms: Features multiple safety alarms, including:High/Low Temperature Safety Cut-off & Alarms (e.g., set temperature $\pm 2^\circ\text{C}$).Door Open Alarm (audible alarm if open for over one minute).Power Failure Alarm (audio-visual).Compressor Protection: Includes a time delay for compressor switch-on and an overload cut-off relay (in cooling models like the CIS-24 Plus).Data Logging and Traceability (Optional Features):Memory: Stores multiple user programs (e.g., 9 programs).PC Communication: RS-485 interface for PC communication with optional software complying with USFDA’s 21 CFR Part 11 guidelines (for electronic records and signatures).Printer Interface: Centronic interface to record Temperature, Date, and Time via a Dot Matrix printer.Power Record: Records power failure and resumption with date and time.
